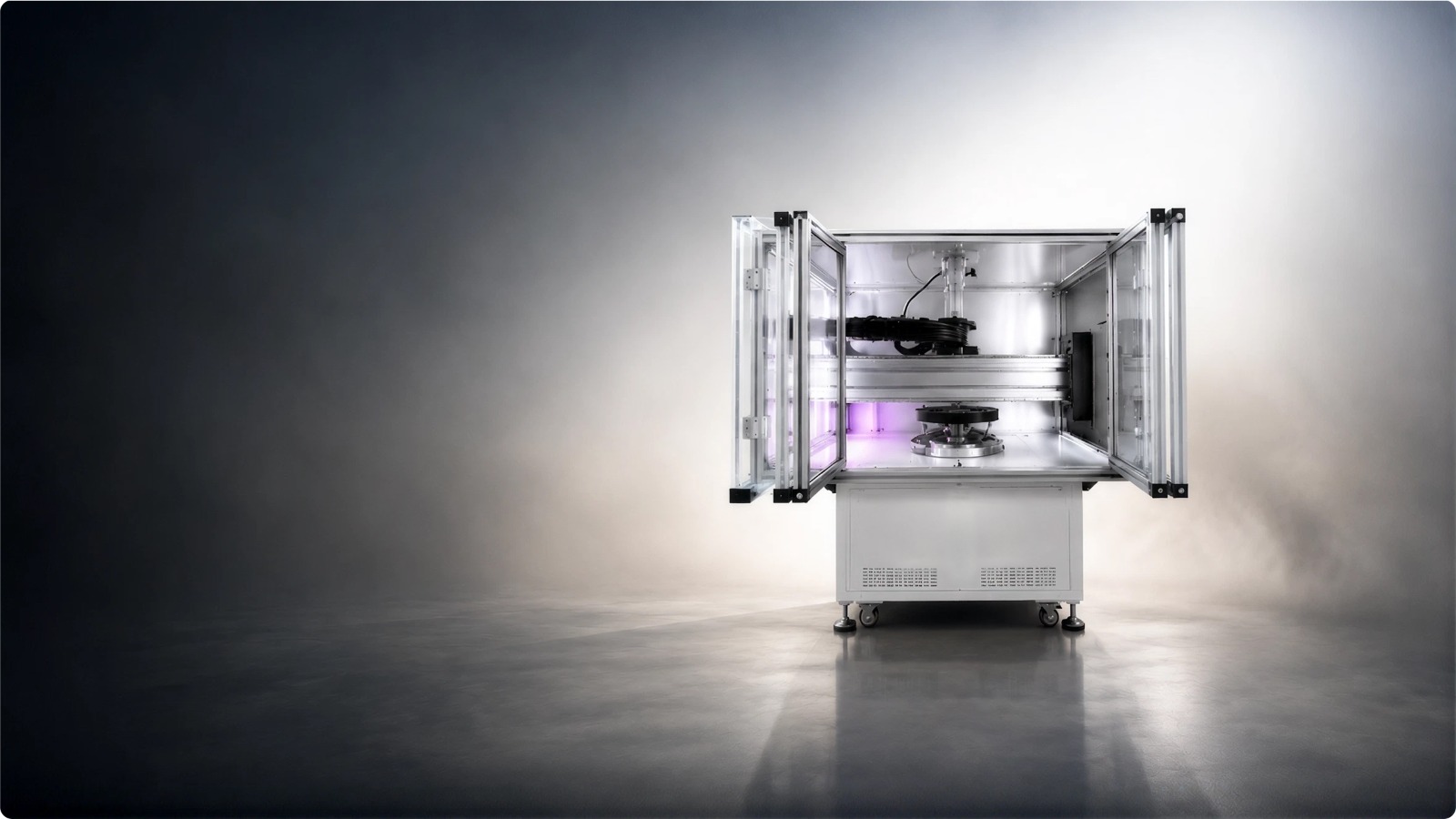

Wire Bonding Machine
Fully automatic wire bonder with an extra-large working area and camera-guided bond process control, from manual to fully inline.
- 1,130 × 700 mmExtra-Large Working Area (X/Y)
- <15 minBond Head Changeover Time
- Manual–InlineAutomation Range
Specification
| Feature | Details |
|---|---|
| Model | F&K M17XL — Fully Automatic Wire Bonder |
| Working Area | 1,130 mm (X) × 700 mm (Y); 44" × 27" — Extra-Large Working Area |
| Bonding Process Compatibility | Suitable for All Common Wire Bonding Processes |
| Positioning System | Robot Arm Guides Bonding Head Completely Vibration-Free Over the Entire Working Area |
| Positioning Accuracy | Micrometre-Accurate Positioning Despite Long Travel Distances |
| Working Area Access | Accessible from All Sides for Manual Feeding |
| Bond Head Changeover | Quick and Easy Changeover in Less Than 15 Minutes |
| Process Monitoring | Continuous Camera-Guided Bond Process Control (BPC) |
| Automation Range | Wide Range of Automation Options, from Manual to Fully Inline |
| Automation Options | Manual Hand Pick-Up; Conveyor Lines for Inline Automation; Customised Indexer System for Components or Workpiece Carriers |
