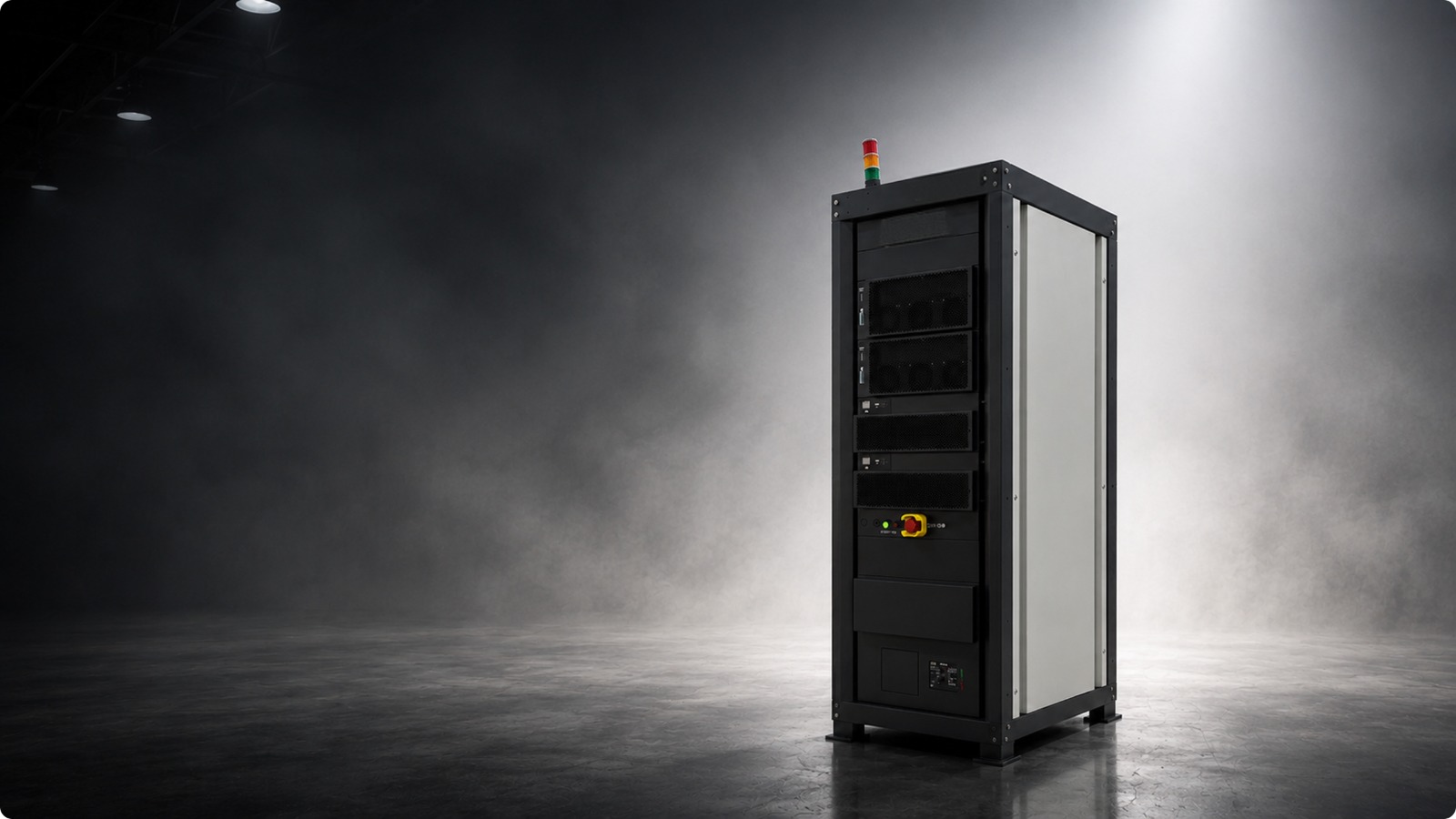

Pack Testing Machine
High-power charge & discharge test system up to 500 V and ±100 A, with regenerative discharge that feeds energy back to the grid.
- 500V / 100AVoltage / Current Test Range
- 90%Energy Feedback Efficiency
- ±0.05%Voltage & Current Accuracy
Specification
| Feature | Details |
|---|---|
| Main Channels | 1CH per Rack, 50kW Maximum Output Power |
| Voltage Test Range | 0.2V–500V, Continuously Adjustable |
| Current Test Range | -100A to +100A, Min. Output 100mA |
| Accuracy & Resolution | ±0.05% FS Accuracy; Voltage 1mV / Current 1mA Resolution |
| Working Modes | CC / CV / CCCV Charging; CC / CV / CP / CR Discharge |
| Communication | CAN 2.0A/B, RS485, LAN, Full BMS Integration |
| Programmable Steps | Max. 10,000 Cycles, 10,000 Steps, 10 Nested Loops |
| Data Recording | Min. 10ms Interval; Export to Excel, TXT & Curve Formats |
| Protection | OVP, OCP, Short-Circuit, Over-Temp & Power-Off Protection |
| Cabinet & Power Supply | 600×850×1980mm, ≤300Kg, 2CH/Cabinet; AC 380V ±10%, 50Hz ±10% |
