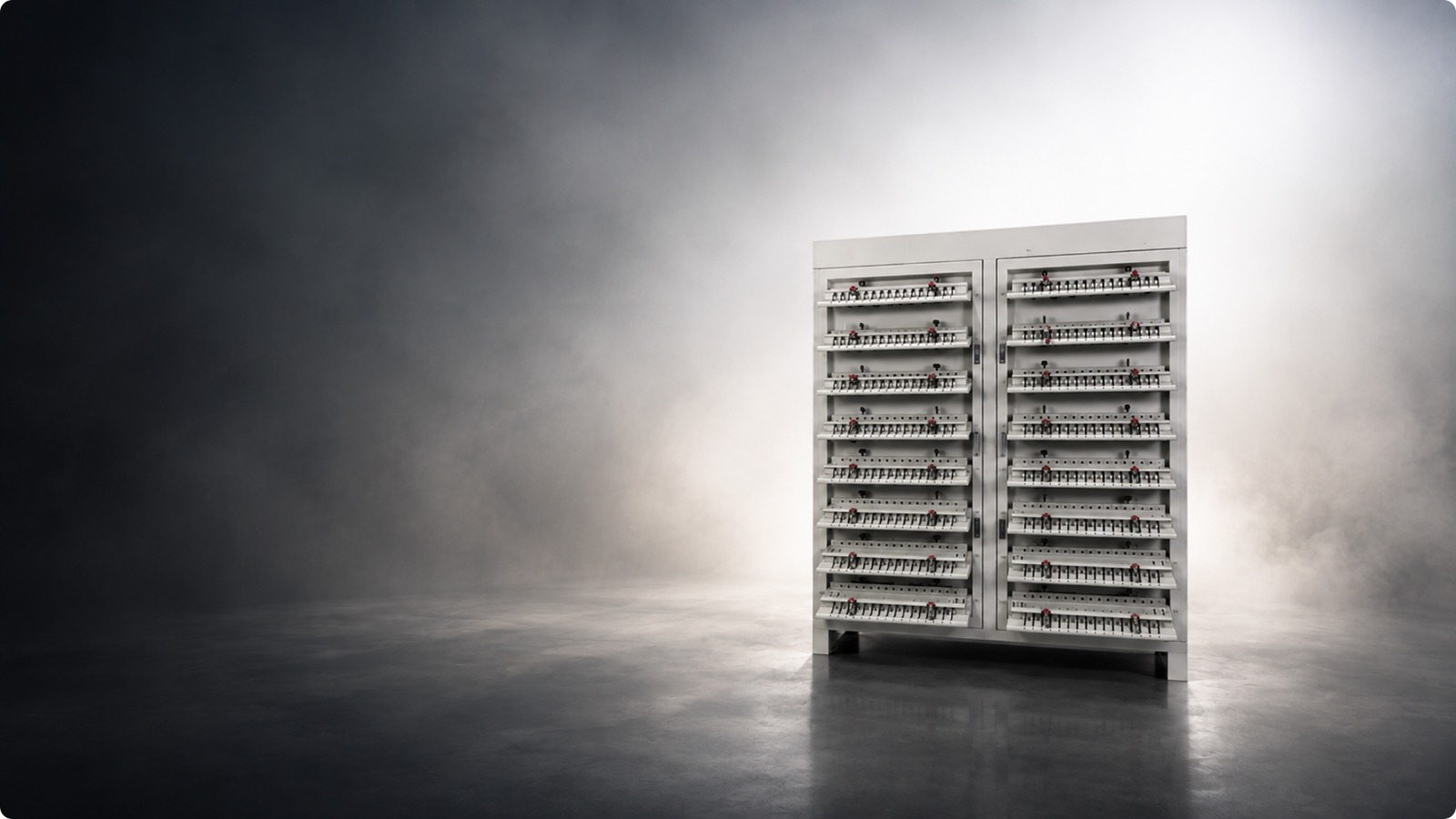

Cell Grading Machine
512-channel battery testing cabinet engineered for accurate, reliable and efficient cell capacity validation.
- 512+Testing Channels
- ±0.1%Measurement Accuracy
- 0–5VTesting Voltage Range
Specification
| Feature | Details |
|---|---|
| Channels | 512 Independent Testing Channels |
| Voltage Range | 0-5V Testing Range with 1mV Resolution |
| Current Range | 30mA-3A Output with 1mA Resolution |
| Voltage Accuracy | ±0.1% Reading + ±0.1% Full Scale Accuracy |
| Charging Method | Constant Current (CC) & Constant Voltage (CV) Charging |
| Battery Support | Compatible with Cylindrical Cells (10-100mm Height) |
| Grading Method | Automatic Capacity, Time & Discharge Platform Grading |
| Safety Protection | Over Voltage, Under Voltage, Over Current & Over Capacity Protection |
| Data Recording | Real-time Data Logging Every ≤8 Seconds |
| Software | PC-Controlled Software with Graphs, Cycle Data & RS485 Communication |
